Introduction

       I have done some research on NodeJS with Swagger, and some crash course practical developement. I personally think I learn better by coding step by step, so for this blog I’ll follow and break down this Youtube Video called “NodeJS Swagger API Documentation Tutorial Using Swagger JSDoc” By Maksim Ivanov.

Steps

Prerequisite

  • Github account
  • Git
  • NodeJS
  • VSCode

Github setup

  1. Created a repository here by using GitHub’s website UI.
  2. Cloned to my local machine by using the following code
git clone https://github.com/tiukenywil11/node-express-swagger-crud.git
  1. Navigated in and opened the directory on VSCode.
cd node-express-swagger-crud
code .

Initialize project

  1. Initialize Node project.
npm init
  1. Just used default configurations.
  2. Install dependencies
  • express: Used as server.
  • lowdb: Used to store data.
  • morgan: Output the logs.
  • nanoid: Create unique ids.
  • cors: To setup cross origins policy.
  • swagger-jsdoc: JS docs syntax.
  • swagger-ui-express: To serve as swagger ui specifications
npm install express lowdb@1.0.0 morgan nanoid cors swagger-jsdoc swagger-ui-express

Create the server

  1. Create and append ‘index.js’.
touch index.js
  • Import the required libraries
const express = require("express");
const cors = require("cors");
const morgan = require("morgan");
const low = require("lowdb");
  • Initialize port to get from the environment variable, or set it to ‘4000’.
const PORT = process.env.PORT || 4000;
  • Link data to the file ‘db.json’
const FileSync = require("lowdb/adapters/FileSync");

const adapter = new FileSync("db.json");
const db = low(adapter);
  • Add default characters to db.
db.defaults({ books: []}).write()
  • Initilialize ExpressJS.
const app = express();
  • Set ExpressJS DB.
app.db = db;
  • Initialize CORS, ExpressJS JSON library, and Morgan.
app.use(cors());
app.use(express.json());
app.use(morgan("dev"));
  • Create server listener.
app.listen(PORT, () => console.log(`The service is running on port ${PORT}`));
  1. Test the server.
node index.js
  • Should show the following message.
The service is running on port 4000

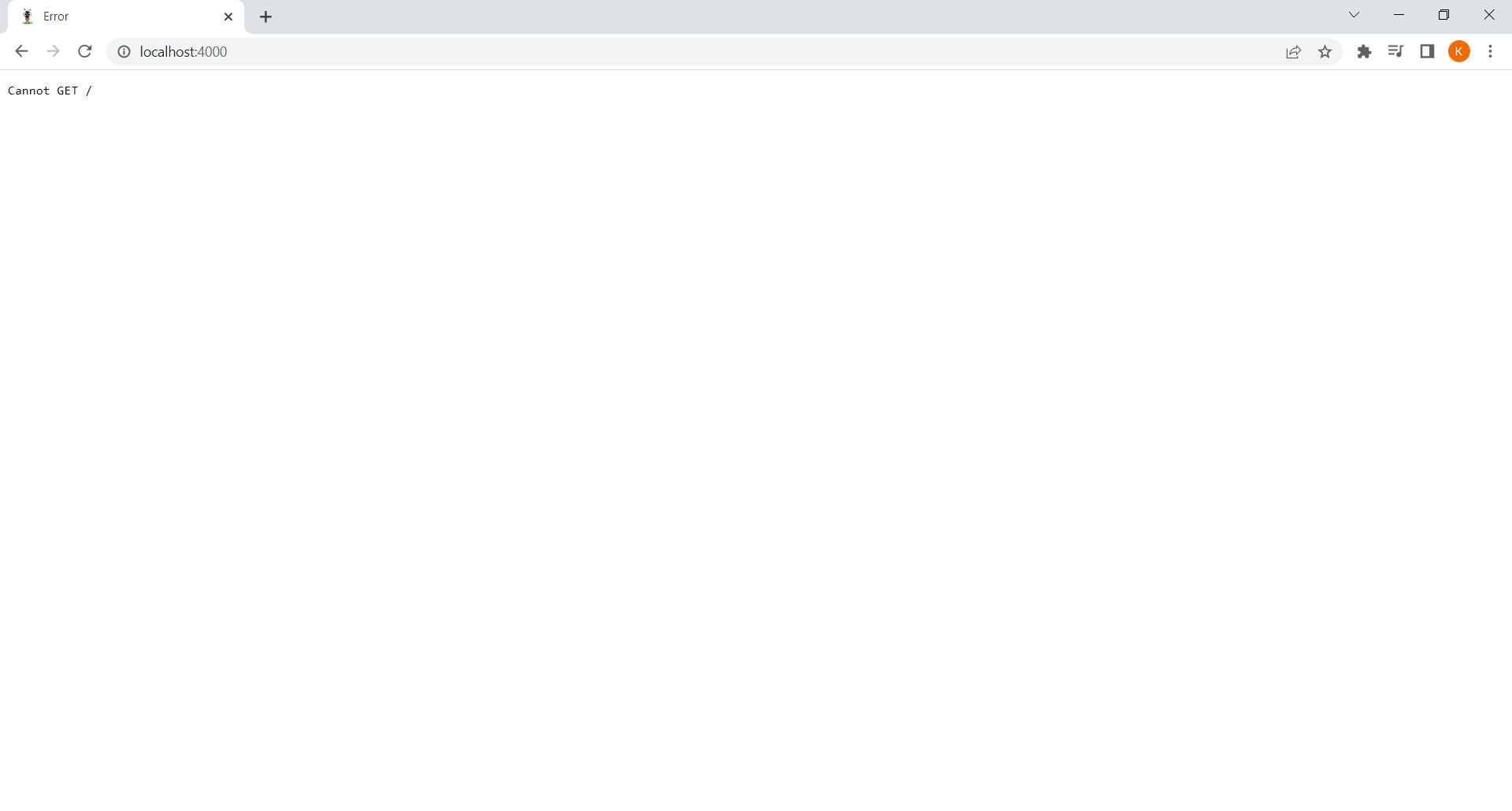

  • Accessing via http://localhost:4000/ would show the following message.
Cannot GET /

server-screen

Error encountered:

  • lowdb 3.0.0 (ERR_REQUIRE_ESM).
    • Reason: Version incompatible with node^16.13.1
    • Solution: Downgraded to lowdb^1.0.0
  1. Committed changes in the repository.
git add .
git commit -m "Part 1: Creating a server"
git push

Create Routes

  1. Create ‘routes’ directory.
mkdir routes
  1. Create and append’routes/books.js’ file.
touch routes/books.js
  • Import the required libraries.
const express = require("express");
const router = express.Router();
const { nanoid } = require("nanoid");
  • Initilialize ID length.
const idLength = 8;
  • Define books route.
    • Note: ‘app.db’ is initialized on ‘index.js’
  • Create ‘GET’ books array.
router.get("/", (req, res) => {
	const books = req.app.db.get("books");
	// sends a response which are 'books'
	res.send(books);
})
  • Create ‘GET’ for a single entry.
router.get("/:id", (req, res) => {
	const book = req.app.db.get("books").find({ id: req.params.id }).value();
	res.send(book);
})
  • Create ‘POST’ to add to the book array.
router.post("/", (req, res) => {
	try {
		const book = {
			id: nanoid(idLength),
			// This should be expounded on real projects.
			...req.body
		};
		req.app.db.get("books").push(book).write();
	} catch(error) {
		return res.status(500).send(error);
	}
})
  • Create ‘PUT’ to append an entry.
router.put("/:id", (req, res) => {
	try {
		req.app.db.get("books").find({ id: req.params.id }).assign(req.body).write();
		res.send(req.app.db.get("books").find({ id:req.params.id }));
	} catch(error) {
		return res.status(500).send(error);
	}
})
  • Create ‘DELETE’ to remove an entry.
router.delete("/:id", (req, res) => {
	req.app.db.get("books").remove({ id: req.params.id }).write();
	res.sendStatus(200);
})
  • Export the routes.
module.exports = router;
  1. Add routes to ‘index.js’.
  • Import booksRouter. Ideally placed together with other imports.
const booksRouter = require('./routes/books');
  • Initialize books router. Should be placed before ‘app.listen’
app.use("/books",booksRouter);
  1. Added test data to ‘db.json’ for a quick test.
{
  "books": [
    {
      "id": "123456",
      "name": "Book",
    }
  ]
}
  1. Test the server.
node index.js
  • Should show the following message.
The service is running on port 4000
  • Accessing via http://localhost:4000/ would show the following message.
Cannot GET /

server-screen

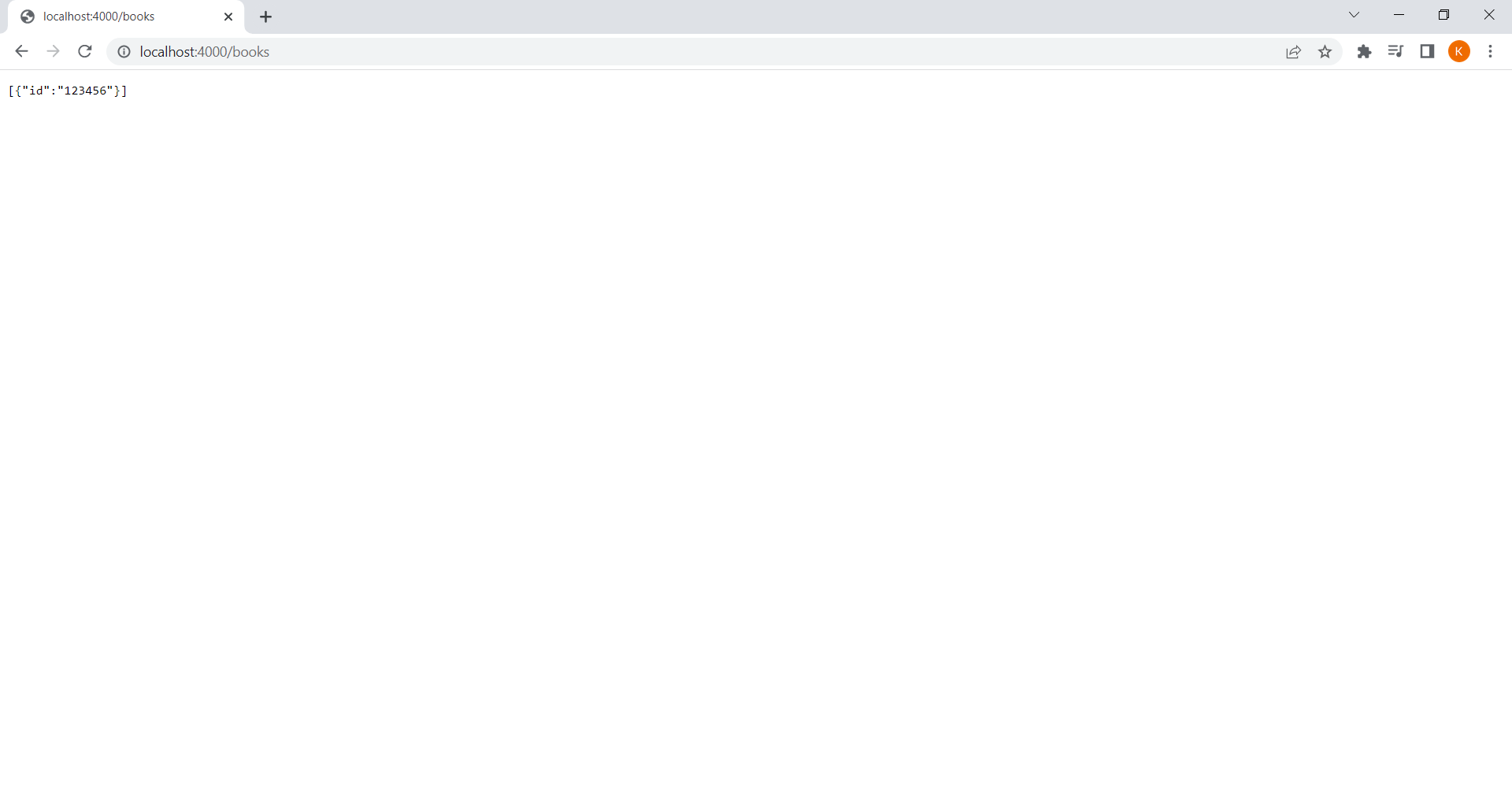

  • Accessing via http://localhost:4000/books would show the following message.
[{"id":"123456"}]

server-screen-2

  1. Committed changes in the repository.
git add .
git commit -m "Part 2: Create routes"
git push
  • Second Commit: Routes are connected to ‘index.js’, test with GET successful.

Adding SwaggerUI

  1. Append ‘index.js’.
  • Import swagger. Ideally placed together with other imports.
const swaggerUI = require("swagger-ui-express");
const swaggerJsDoc = require("swagger-jsdoc");
  • Create options for swagger, placed under ‘db.defaults’
const options = {
	definition: {
		openapi: "3.0.0",
		info: {
			title: "Library API",
			version: "1.0.0",
			description: "A simple Express Library API"
		},
		servers: [{
			url: "http://localhost:4000"
		}],
	},
	apis: ["./routes/*.js"],
};
  • Initialize swagger js docs, under swagger options.
const specs = swaggerJsDoc(options);
  • Use the API docs, placed after instantiation of express to variable app.
app.use("/api-docs", swaggerUI.serve, swaggerUI.setup(specs));
  1. Test the server.
node index.js
  • Should show the following message.
The service is running on port 4000

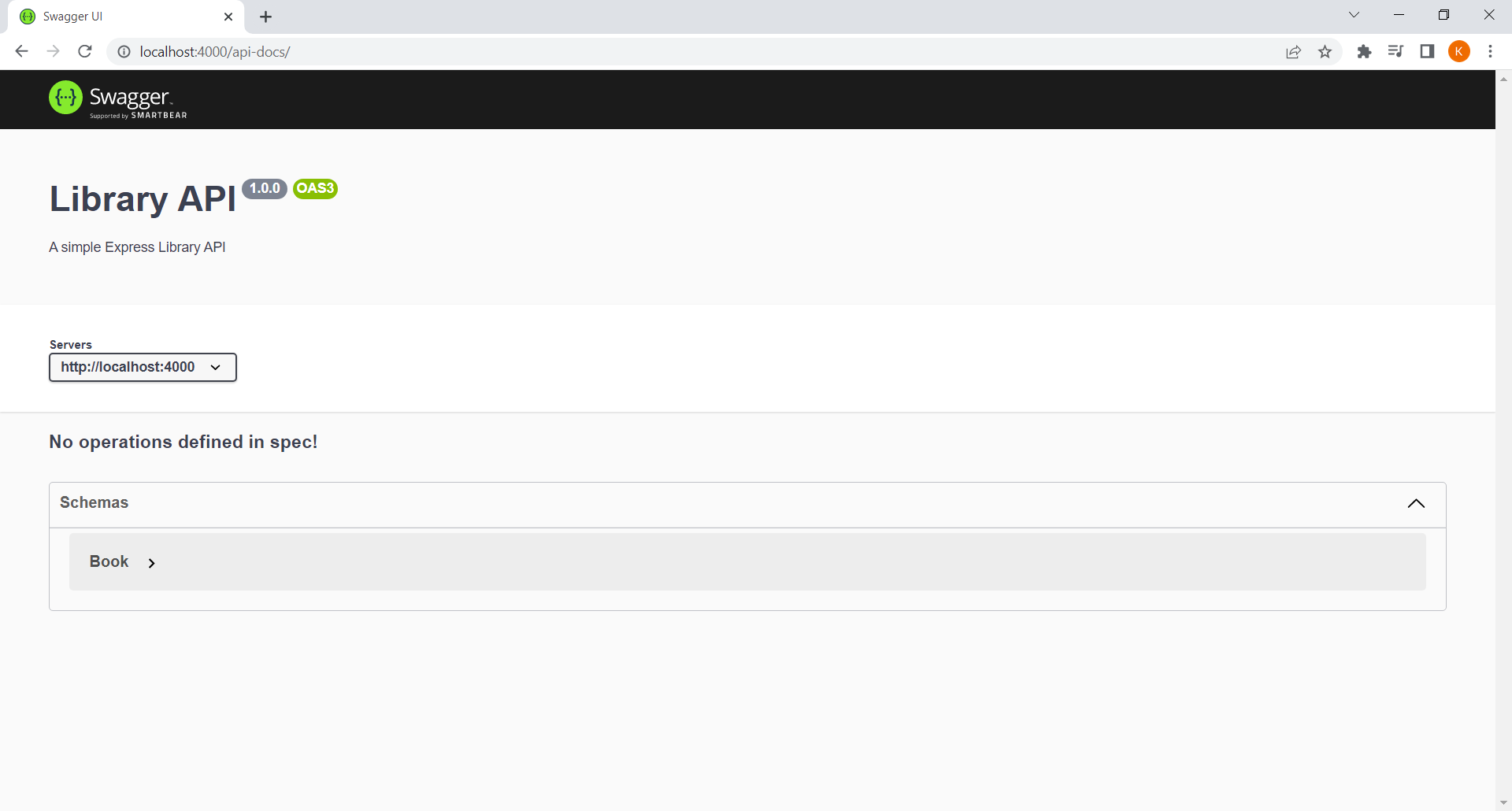

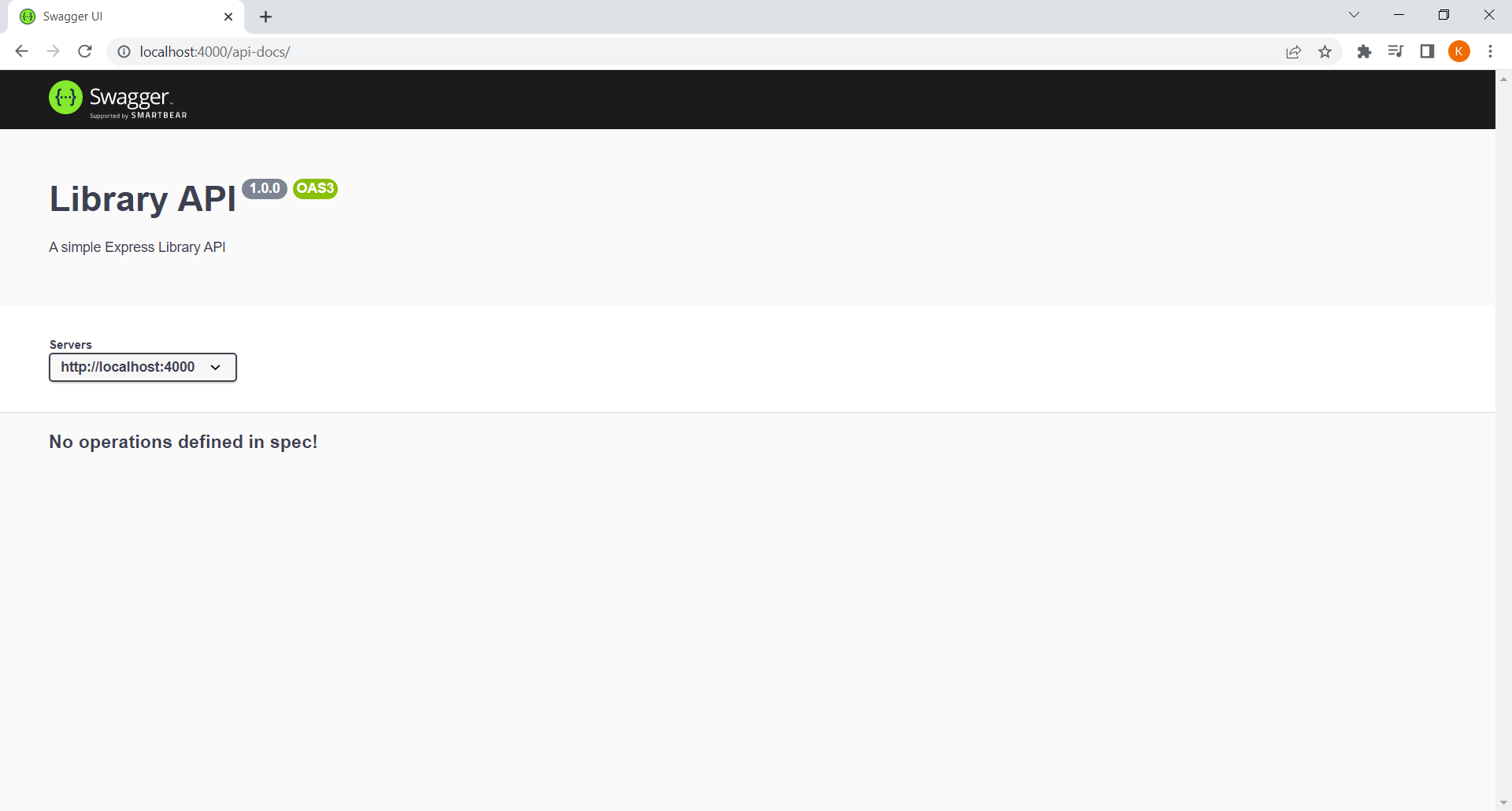

  • Accessing via http://localhost:4000/api-docs would show the following. server-screen-3
  1. Committed changes in the repository.
git add .
git commit -m "Part 3: Added base Swagger"
git push

Adding Schemas for books

Additional Swagger resource regarding component specification can be found here

  1. Append’routes/books.js’ file.
  • Add swagger definition after initializing ID length.
/**
 * @swagger
 * components:
 *   schemas:
 *     Book:
 *       type: object
 *       required:
 *         - title
 *         - author
 *       properties:
 *         id:
 *           type: string
 *           description: The auto-generated id of the book
 *         title:
 *           type: string
 *           description: The book title
 *         author:
 *           type: string
 *           description: The book author
 *       example:
 *         id: 123456
 *         title: Book
 *         author: Aut H. Or
 */

Error encountered:

  • Swagger ‘component’ not showing.
    • Reason: Javascript option apis: ["*./routes/*.js"] on ‘index.js’ is a typo.
    • Solution: Appended to the following apis: ["./routes/*.js"], Notes:
  • Also appended ‘db.json’ test data from:
{
  "books": [
    {
      "id": "123456",
      "name": "book",
    }
  ]
}

to the following:

{
  "books": [
    {
      "id": "12345678",
      "title": "Book",
      "author": "Aut H. Or"
    }
  ]
}

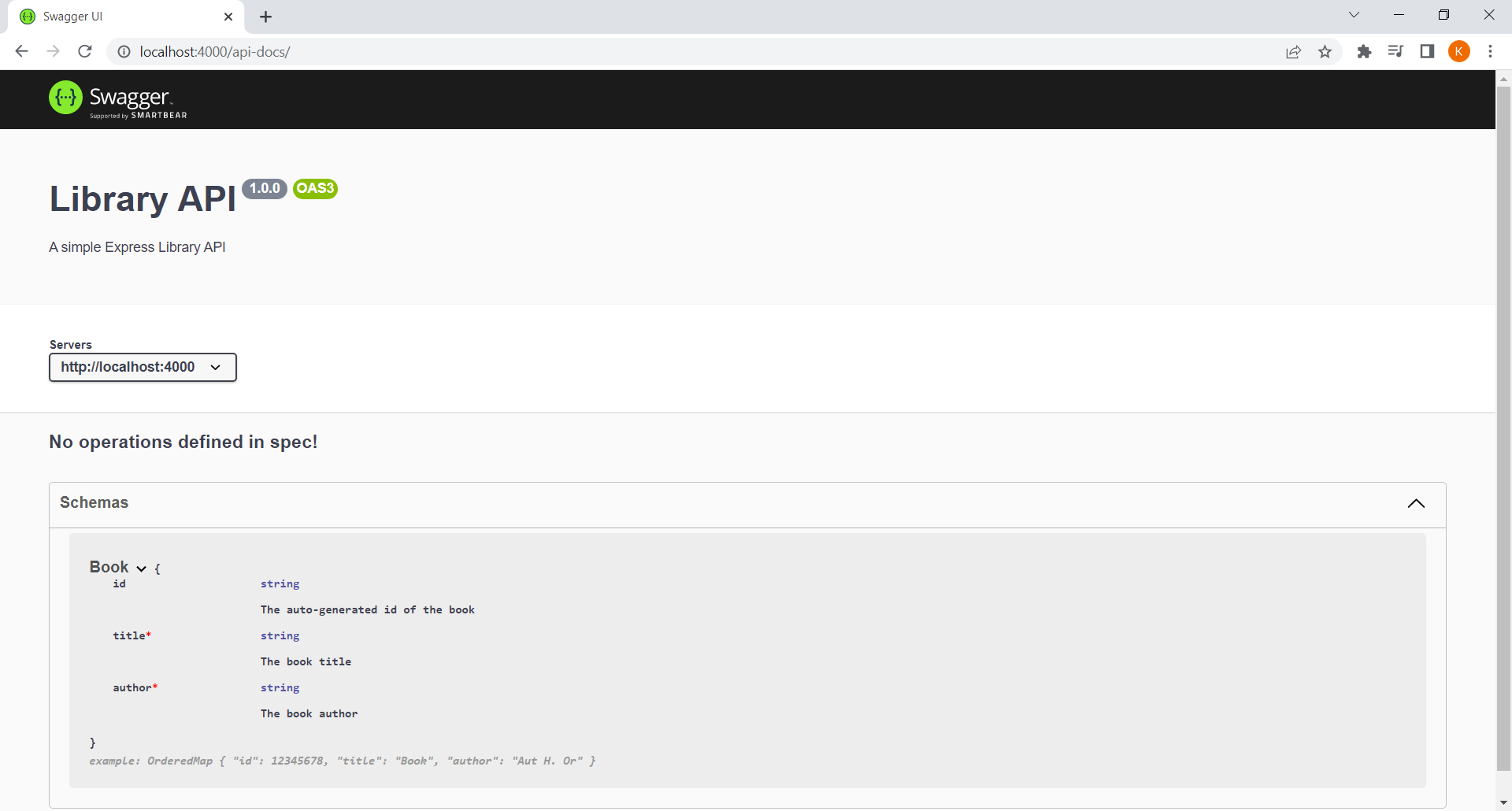

  • Accessing via http://localhost:4000/api-docs would show the following. server-screen-4 server-screen-5
  • Create a swagger tag, to grpup all ‘books’/
 /**
  * @swagger
  * tags:
  *   name: Books
  *   description: The books managing API
  */

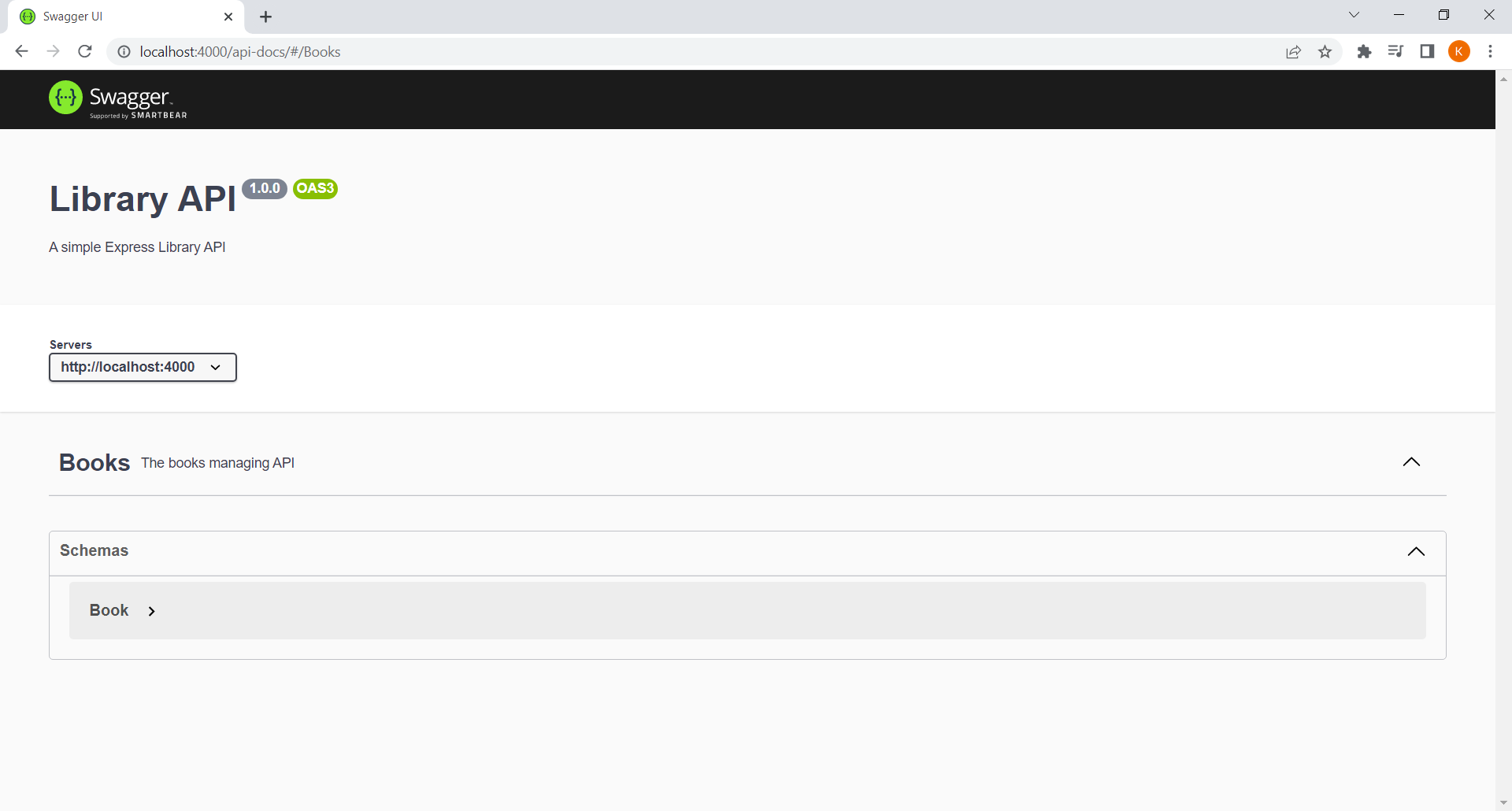

  • Accessing via http://localhost:4000/api-docs would show the following. server-screen-6
  • Add Swagger for ‘GET’ route. Placed above the ‘router.get’.
/**
 * @swagger
 * /books:
 *   get:
 *     summary: Returns the list of all the books
 *     tags: [Books]
 *     responses:
 *       200:
 *         description: The list of the books
 *         content:
 *           application/json:
 *             schema:
 *               type: array
 *               items:
 *                 $ref: '#/components/schemas/Book'
 */

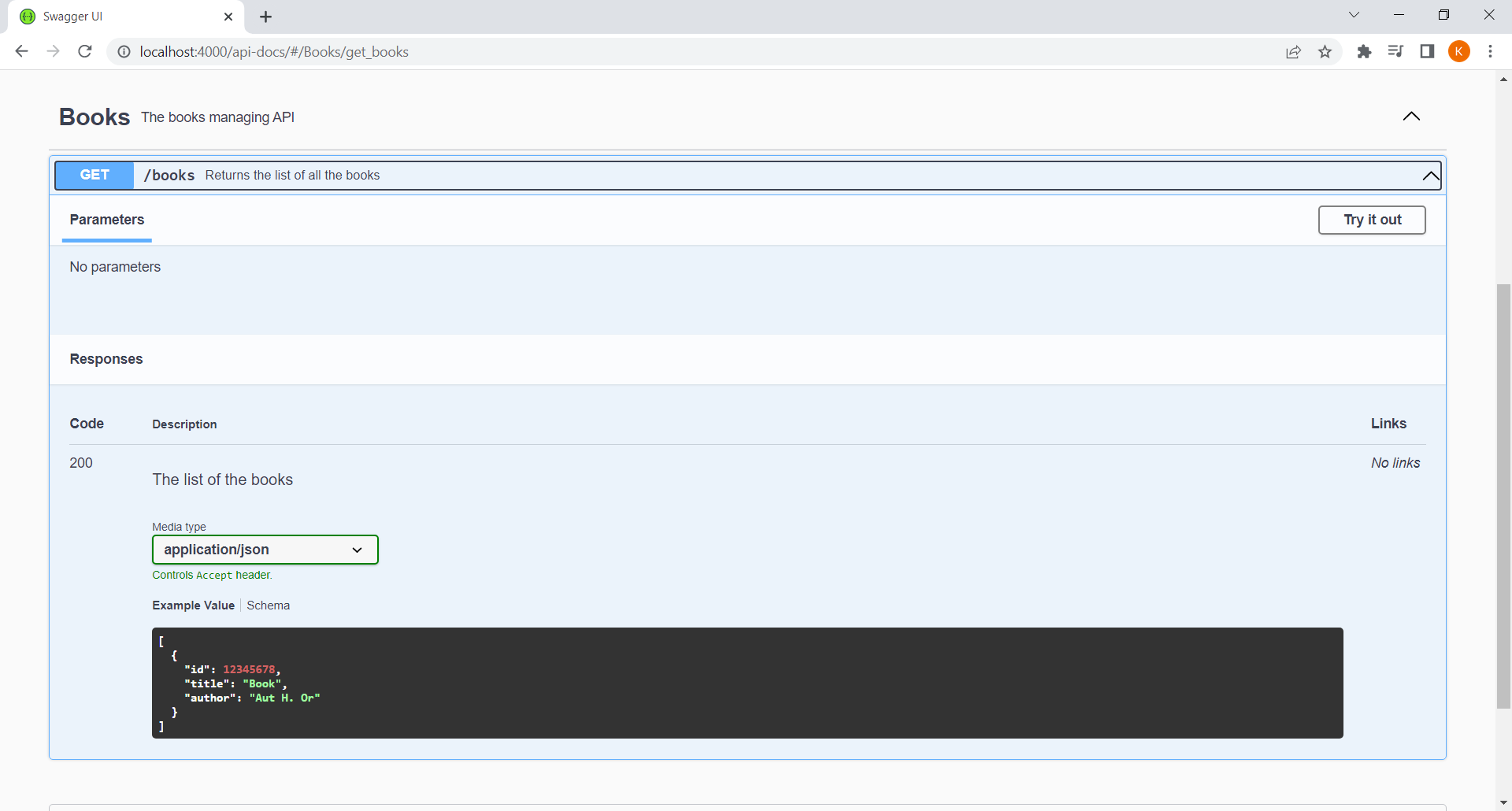

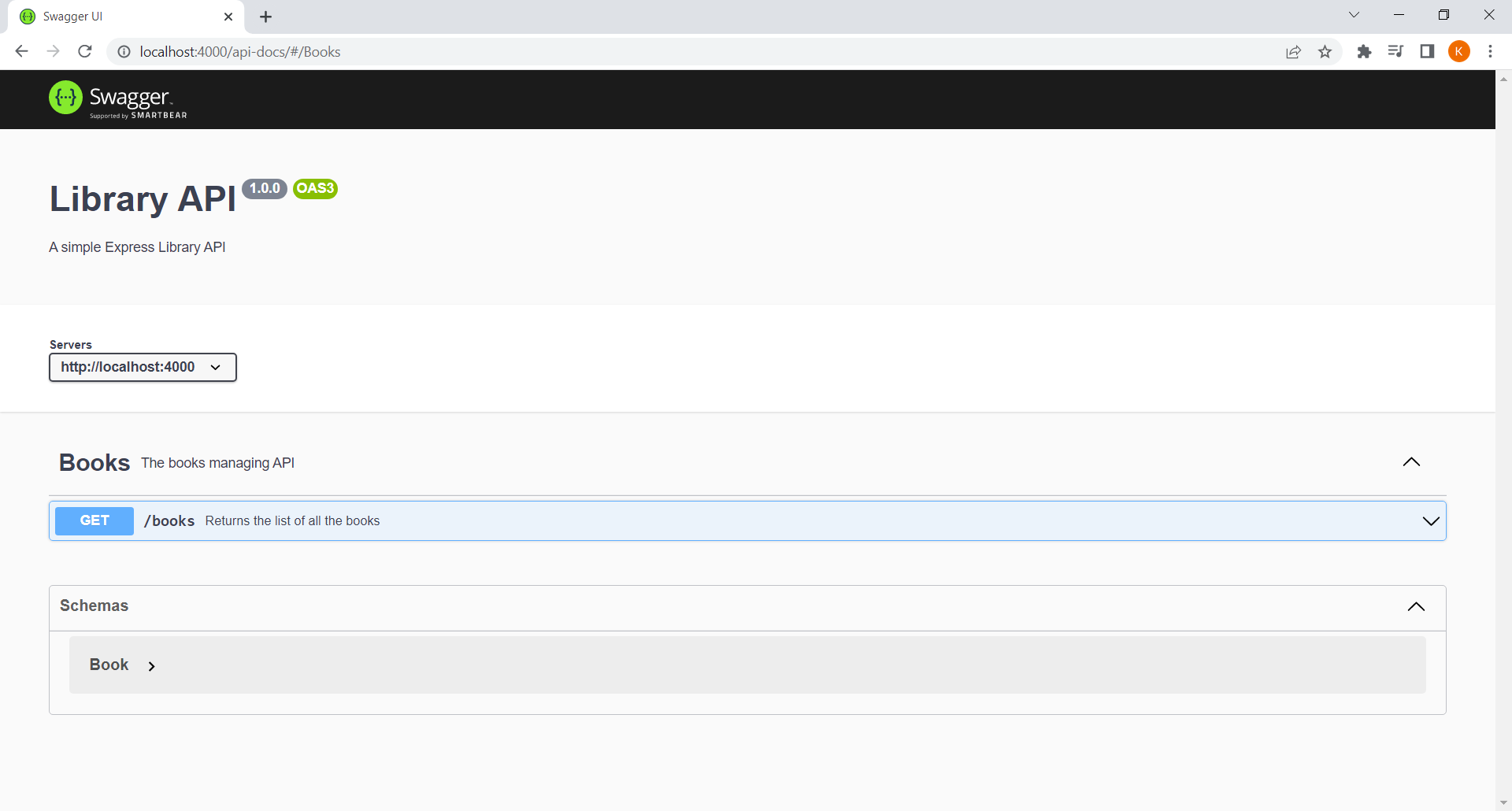

  • Accessing via http://localhost:4000/api-docs would show the following. You can also click “Try it out”, to test the API endpoint.
    • These images are similar to the other routes. server-screen-7 server-screen-8
  • Add Swagger for ‘GET’ for a single entry. Placed above the ‘router.get’ that gets a single entry.
/**
 * @swagger
 * /books/{id}:
 *   get:
 *     summary: Get the book by id
 *     tags: [Books]
 *     parameters:
 *       - in: path
 *         name: id
 *         schema:
 *           type: string
 *         required: true
 *         description: The book id
 *     responses:
 *       200:
 *         description: The book description by id
 *         contens:
 *           application/json:
 *             schema:
 *               $ref: '#/components/schemas/Book'
 *       404:
 *         description: The book was not found
 */
  • Add error 404 for ‘GET’ for single entry. This is placed inside router.get, and after book variable is initialized.
if(!book) {
	res.sendStatus(404);
}
  • Error Encountered:
    • ‘GET’ with {:id} not returning the a value:
    • Reason: Wrong variable is passed backed tores.send(books);
    • Solution: Appended to the following res.send(book);
  • Add Swagger for ‘POST’ route. Placed above the ‘router.post’ function.
/**
 * @swagger
 * /books:
 *   post:
 *     summary: Create a new book
 *     tags: [Books]
 *     requestBody:
 *       required: true
 *       content:
 *         application/json:
 *           schema:
 *             $ref: '#/components/schemas/Book'
 *     responses:
 *       200:
 *         description: The book was successfully created
 *         content:
 *           application/json:
 *             schema:
 *               $ref: '#/components/schemas/Book'
 *       500:
 *         description: Some server error
 */
  • Add a respond snippet for ‘POST’ route, after ‘req.app.db.get’ snippet.
res.send(book);
  • Add Swagger for ‘PUT’ route, Placed above the ‘router.put’ function.
/**
 * @swagger
 * /books/{id}:
 *  put:
 *    summary: Update the book by the id
 *    tags: [Books]
 *    parameters:
 *      - in: path
 *        name: id
 *        schema:
 *          type: string
 *        required: true
 *        description: The book id
 *    requestBody:
 *      required: true
 *      content:
 *        application/json:
 *          schema:
 *            $ref: '#/components/schemas/Book'
 *    responses:
 *      200:
 *        description: The book was updated
 *        content:
 *          application/json:
 *            schema:
 *              $ref: '#/components/schemas/Book'
 *      404:
 *        description: The book was not found
 *      500:
 *        description: Some error happened
 */
  • Add Swagger for ‘DELETE’ route, Placed above the ‘router.delete’ function.
  • Error encountered:
    • router.delete is not working properly.
    • Reason: The router for delete had the wrong syntax router.put on ‘books.js’.
    • Solution: Appended to the following router.delete
/**
 * @swagger
 * /books/{id}:
 *   delete:
 *     summary: Remove the book by id
 *     tags: [Books]
 *     parameters:
 *       - in: path
 *         name: id
 *         schema:
 *           type: string
 *         required: true
 *         description: The book id
 *
 *     responses:
 *       200:
 *         description: The book was deleted
 *       404:
 *         description: The book was not found
 */
  1. Test the server.
node index.js
  • Should show the following message.
The service is running on port 4000
  • Accessing via http://localhost:4000/ would show the following message.
Cannot GET /

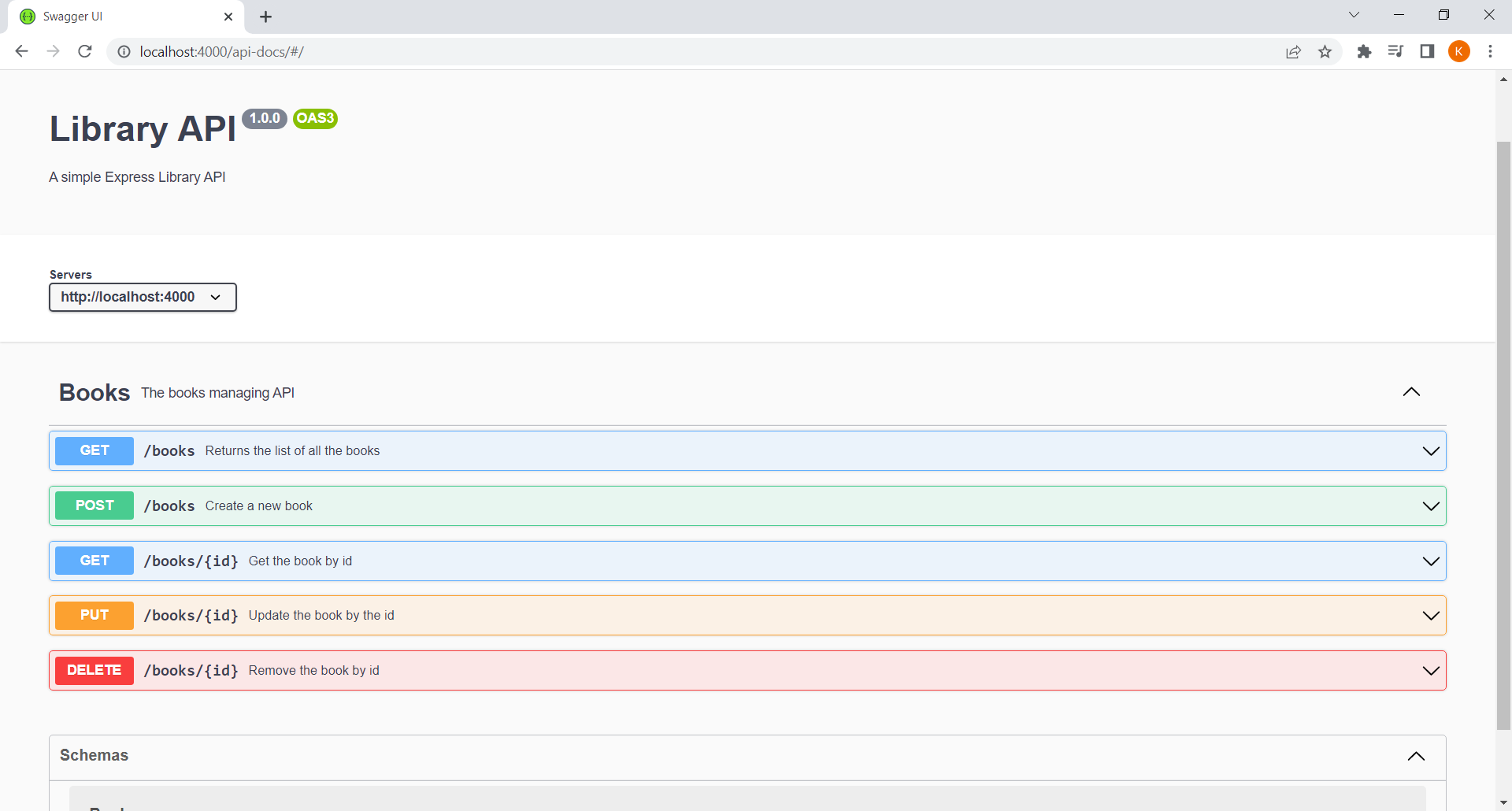

  • Accessing via http://localhost:4000/api-docs would show the following. You can also click “Try it out” for each request type, to test the API endpoint. server-screen-9
  1. Committed changes in the repository.
git add .
git commit -m "Part 4: Added Swagger for the rest, final working demo"
git push
  • Fourth Commit: Added the rest of the Swagger definitions, working demo.

Outro

       Encountered a few errors while doing this demo, mainly due to careless syntax errors, but aside from that I think Swagger library is pretty convenient, and can be used to complement Postman for testing APIs. You can find the final Github repo here. I plan on trying to implement a containerize version of this if I get the time to, will update this post if I do.

Read More:
NodeJS: Research
